Transformation Pipeline

Split complex transformation from 3D to 2D into a sequence of simpler transformations.
We discussed model transformations before
Now we discuss view, projection, and viewport transformations

Transformation Pipeline

View Transformation
- setup extrinsic camera parameters: position and orientation
Projection Transformation
- setup intrinsic camera parameters: opening angle and depth range
Viewport Transformation
- setup image parameters/resolution: width and height

Transformation Pipeline

Model coordinates
- local coordinate system for each model
World coordinates
- one global coordinate system
Camera / eye coordinates
- world transformed to standard camera

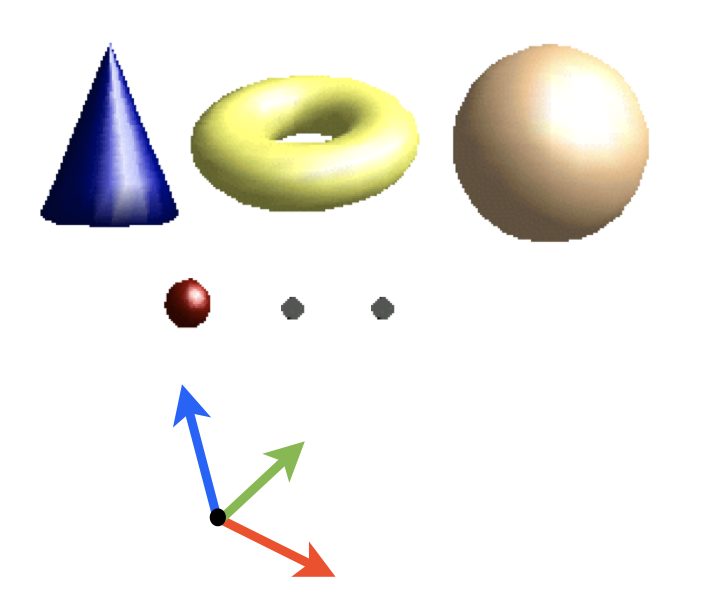

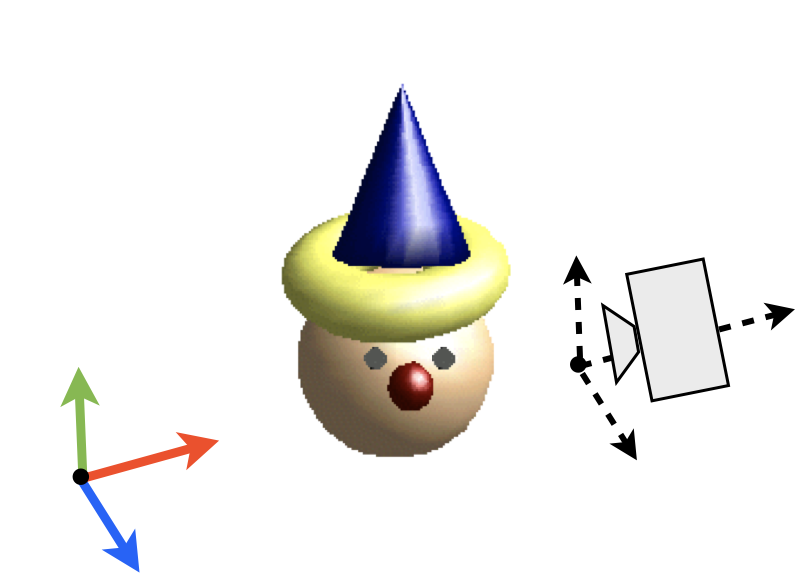

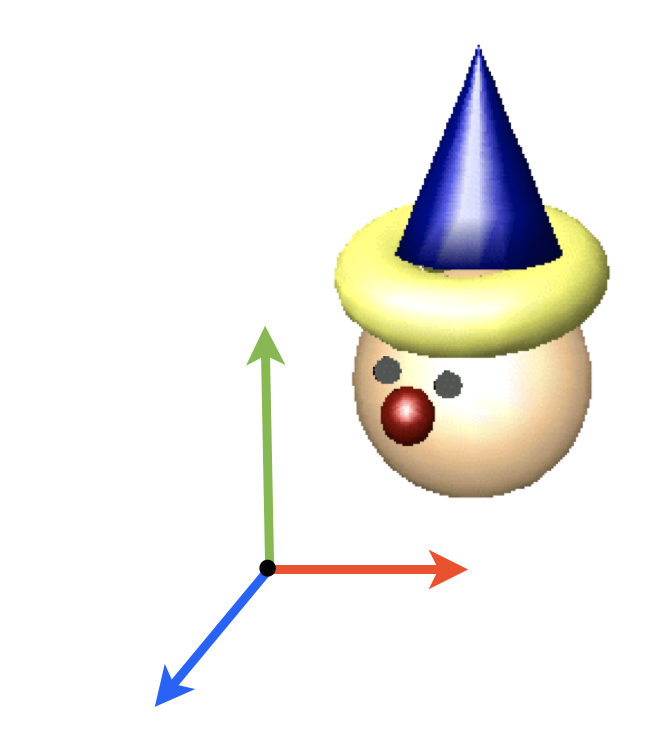

images/coords_model.png model images/coords_world.png world images/coords_camera.png camera

Transformation Pipeline

Model coordinates
- local coordinate system for each model
World coordinates
- one global coordinate system
Camera / eye coordinates
- world transformed to standard camera
Normalized device coordinates
- viewing volume mapped to [-1,1]³
Window coordinates
- from [-1,1]³ to [-1,1]² to pixel coordinates

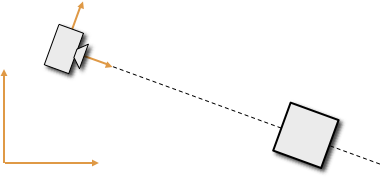

View Transformation

Specify extrinsic camera parameters
- Camera/eye location \(\vec{e}\)
- Viewing direction \(\vec{v}\)
- Up direction \(\vec{u}\)
- Right direction \(\vec{r}\)
- Assume \(\vec{v}\), \(\vec{u}\), \(\vec{r}\) are orthonormal

Transform scene to standard camera
- Camera/eye location \((0,0,0)\)
- Viewing direction \((0,0,-1)\)
- Up direction \((0,1,0)\)
- Right direction \((1,0,0)\)

View Transformation

Matrix from standard camera to \(\vec{e}, \vec{r}, \vec{u}, \vec{v}\):

\[ \matrix{ r_x & u_x & -v_x & e_x \\ r_y & u_y & -v_y & e_y \\ r_z & u_z & -v_z & e_z \\ 0 & 0 & 0 & 1 } \]

The inverse matrix does the job

\[ \matrix{ r_x & u_x & -v_x & e_x \\ r_y & u_y & -v_y & e_y \\ r_z & u_z & -v_z & e_z \\ 0 & 0 & 0 & 1 }^{-1} \;=\; \matrix{ r_x & r_y & r_z & 0 \\ u_x & u_y & u_z & 0 \\ -v_x & -v_y & -v_z & 0 \\ 0 & 0 & 0 & 1 } \cdot \matrix{ 1 & 0 & 0 & -e_x \\ 0 & 1 & 0 & -e_y \\ 0 & 0 & 1 & -e_z \\ 0 & 0 & 0 & 1 } \]

What is a projection?

In mathematics
- An idempotent mapping: \(\mat{P}\of{\mat{P}\of{\vec{x}}} = \mat{P}\of{\vec{x}}\)
In computer graphics
- A mapping from 3D space to a planar 2D image
- Parallel or perspective projection
- Transforms viewing volume to
  normalized device coordinates \([-1,1]^3\)

Classification of Projections

Parallel vs. Perspective Projection

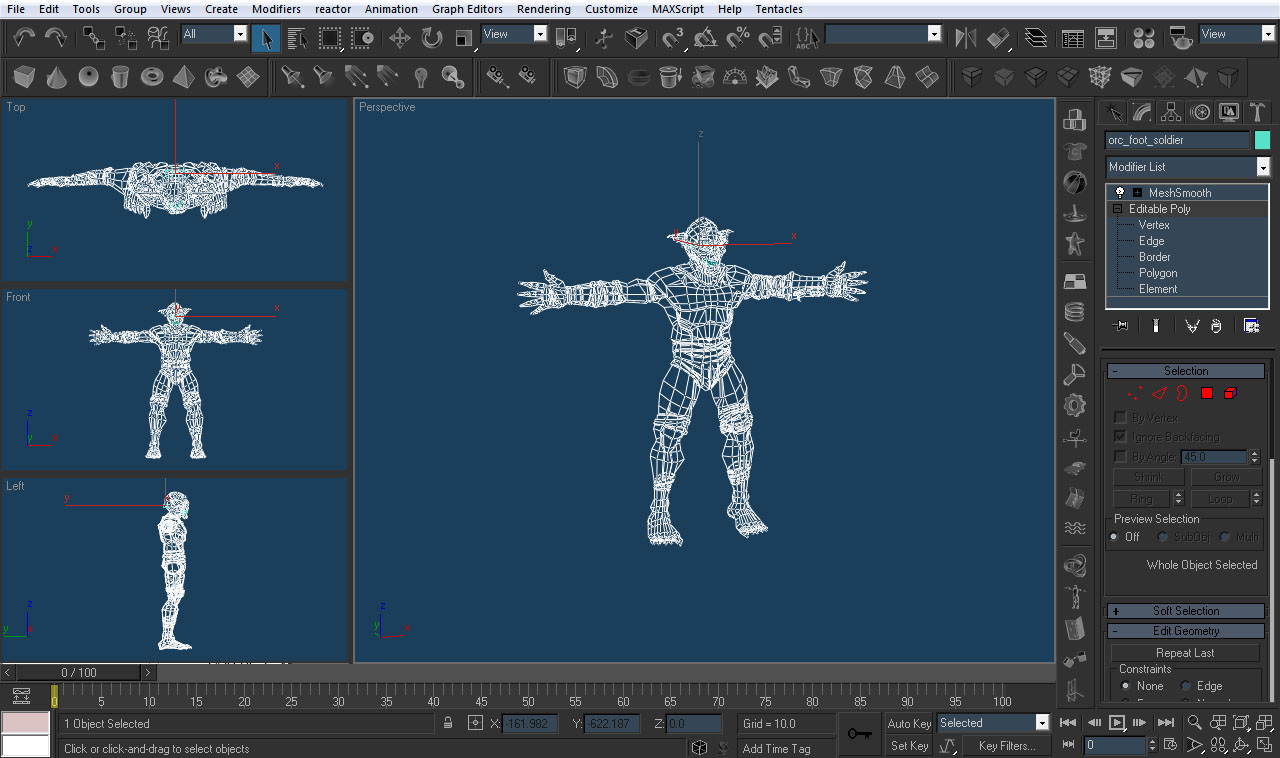

images/3ds-max.png — Autodesk 3D Studio Max

Image from Wikipedia

Parallel vs. Perspective Projection

Parallel projections
- One direction of projection for all points
- Orthographic: direction perpendicular to image plane
- Preserve parallelism & lengths
- Used in technical applications

Perspective projections
- Each point projects towards center of projection
- Perspective foreshortening, realistic appearance
- Typically used in graphics applications

Generic Orthographic Projection

Standard camera setup
- located at origin
- looking down negative z-axis

Orthogonal projection onto xy-plane
- xy-coordinates do not change
- remove z-coordinate

\[ \matrix{ 1 & 0 & 0 & 0 \\ 0 & 1 & 0 & 0 \\ 0 & 0 & 0 & 0 \\ 0 & 0 & 0 & 1 } \]

OpenGL Orthographic Projection

Specify viewing volume as axis-aligned box \[ [l,r] \times [b,t] \times [-n,-f] \]
with left/right, bottom/top, near/far boundaries
Map viewing box to unit cube \([-1,1]^3\)
- translate box center to origin
- scale box dimensions to \(2 \times 2 \times 2\)
- z values should be mirrored

\[ \matrix{ \frac{2}{r-l} & 0 & 0 & 0 \\ 0 & \frac{2}{t-b} & 0 & 0 \\ 0 & 0 & \frac{-2}{f-n} & 0 \\ 0 & 0 & 0 & 1 } \cdot \matrix{ 1 & 0 & 0 & -\frac{l+r}{2} \\ 0 & 1 & 0 & -\frac{b+t}{2} \\ 0 & 0 & 1 & -\frac{-n-f}{2} \\ 0 & 0 & 0 & 1 } \;=\; \matrix{ \frac{2}{r-l} & 0 & 0 & -\frac{l+r}{r-l} \\ 0 & \frac{2}{t-b} & 0 & -\frac{b+t}{t-b} \\ 0 & 0 & \frac{-2}{f-n} & -\frac{n+f}{f-n} \\ 0 & 0 & 0 & 1 } \]

Generic Perspective Projection

Standard projection
- Center of projection: \((0,0,0)\)
- Image plane at \(z=-d\)

\[ \vector{x\\y\\z} \;\mapsto\; \vector{x \cdot \frac{-d}{z} \\ y \cdot \frac{-d}{z} \\ -d} \quad\stackrel{?}{\longleftrightarrow}\quad \matrix{ ? & ? & ? & ? \\ ? & ? & ? & ? \\ ? & ? & ? & ? \\ ? & ? & ? & ? } \cdot \vector{x\\y\\z\\1} \]

Do not put \(z\) in the matrix!

Homogeneous Coordinates

Use homogeneous coordinates \((x,y,z,w)\)!
- Vectors are represented by \(\transpose{(x,y,z,0)}\)
- Points are represented by \(\transpose{(wx,wy,wz,w)}\) for any \(w \neq 0\)
- Divide a point \(\transpose{(wx,wy,wz,w)}\) by \(w\) to get its canonical representation \(\transpose{(x,y,z,1)}\) (“homogenization”)

Geometric interpretation
- Points: lines through origin
- Vectors: points at infinity

Generic Perspective Projection

Standard projection
- Center of projection: \((0,0,0)\)
- Image plane at \(z=-d\)

\[ \vector{x\\y\\z} \;\mapsto\; \vector{x \cdot \frac{-d}{z} \\ y \cdot \frac{-d}{z} \\ -d} \quad\longleftrightarrow\quad \matrix{ 1 & 0 & 0 & 0 \\ 0 & 1 & 0 & 0 \\ 0 & 0 & 1 & 0 \\ 0 & 0 & -1/d & 0 } \cdot \vector{x\\y\\z\\1} \;=\; \vector{x\\y\\z\\-z/d} \;\cong\; \vector{x \frac{-d}{z} \\ y \frac{-d}{z} \\ -d\\ 1} \]

Homogeneous Coordinates

Use homogeneous coordinates \((x,y,z,w)\)!
- Vectors are represented by \(\transpose{(x,y,z,0)}\)
- Points are represented by \(\transpose{(wx,wy,wz,w)}\) for any \(w \neq 0\)
Divide a point \(\transpose{(wx,wy,wz,w)}\) by \(w\) to get its canonical representation \(\transpose{(x,y,z,1)}\) (“homogenization”)
- Defer homogenization until the very last step
We can now use \(4 \times 4\) matrices for
- linear transformations (scaling, rotation)
- affine transformations (linear map + translation)
- projective transformations (affine map + projection)

OpenGL Perspective Projection

Specify viewing volume by
- near and far
- left and right (or opening angle in x)
- bottom and top (or opening angle in y)

Transform this frustum to unit cube [-1,1]³
- so-called frustum mapping

Then perform parallel projection onto xy-plane and viewport transformation

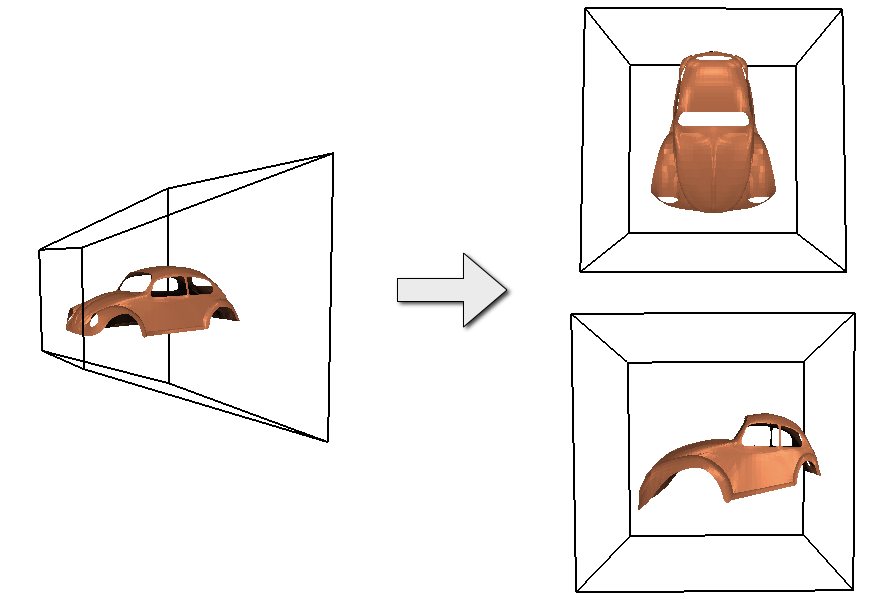

Frustum Mapping

Frustum Mapping

images/frustum-1.png images/frustum-2.png

How to transform \((x,y,z)\)?

\[ \begin{eqnarray*} x &\mapsto& \left( x \frac{n}{-z} - \frac{l+r}{2} \right) \cdot \frac{2}{r-l} \\[2mm] y &\mapsto& \left( y \frac{n}{-z} - \frac{b+t}{2} \right) \cdot \frac{2}{t-b} \end{eqnarray*} \]

Matrix representation:

\[ \matrix{ \frac{2n}{r-l} & 0 & \frac{l+r}{r-l} & 0 \\ 0 & \frac{2n}{t-b} & \frac{b+t}{t-b} & 0 \\ ? & ? & ? & 0 \\ 0 & 0 & -1 & 0 } \]

Frustum Mapping

images/frustum-1.png images/frustum-2.png

How to transform \((x,y,z)\)?

\[ \begin{eqnarray*} z &\mapsto& \frac{a \cdot z + b}{-z} \end{eqnarray*} \]

such that

\[-n \mapsto -1 \;,\quad -f \mapsto +1\]

This leads to

\[ a = -\frac{n+f}{f-n} \;,\quad b = -\frac{2nf}{f-n} \]

Matrix representation:

\[ \matrix{ \frac{2n}{r-l} & 0 & \frac{l+r}{r-l} & 0 \\ 0 & \frac{2n}{t-b} & \frac{b+t}{t-b} & 0 \\ 0 & 0 & -\frac{n+f}{f-n} & -\frac{2nf}{f-n} \\ 0 & 0 & -1 & 0 } \]

Frustum Mapping

images/frustum-1.png images/frustum-2.png

Check frustum corners, e.g.:

\[ \begin{eqnarray*} \transpose{(l,b,-n)} &\mapsto& \transpose{(-1,-1,-1)} \\[2mm] \transpose{(r,t,-n)} &\mapsto& \transpose{(+1,+1,-1)} \\[2mm] \transpose{(l\frac{f}{n},b\frac{f}{n},-f)} &\mapsto& \transpose{(-1,-1,+1)} \\[2mm] \transpose{(r\frac{f}{n},t\frac{f}{n},-f)} &\mapsto& \transpose{(+1,+1,+1)} \\[2mm] \end{eqnarray*} \]

Matrix representation:

\[ \matrix{ \frac{2n}{r-l} & 0 & \frac{l+r}{r-l} & 0 \\ 0 & \frac{2n}{t-b} & \frac{b+t}{t-b} & 0 \\ 0 & 0 & -\frac{n+f}{f-n} & -\frac{2nf}{f-n} \\ 0 & 0 & -1 & 0 } \]

Viewport Mapping

Simple scaling of normalized device coordinates \[ [-1,1] \times [-1,1] \times [-1,1] \]
to window pixel coordinates \[ [l, l+w] \times [b,b+h] \times [0,1] \]
Matrix representation \[ \matrix{ \frac{w}{2} & 0 & 0 & \frac{w}{2}+l \\ 0 & \frac{h}{2} & 0 & \frac{h}{2}+b \\ 0 & 0 & \frac{1}{2} & \frac{1}{2} \\ 0 & 0 & 0 & 1 } \]

Transformation Pipeline

View Transformation
- setup extrinsic camera parameters: position and orientation
Projection Transformation
- setup intrinsic camera parameters: opening angle and depth range
Viewport Transformation
- setup image parameters/resolution: width and height

Try it yourself!

Model transformation \(\mat{M} = \mat{R}_y\of{\cdot} \, \mat{T}_z\of{\cdot} \, \mat{S}_x\of{\cdot}\)

Invariance

Which properties are invariant under which transformations?
- Properties
  - Position, Length, Angles, Area, Orientation, Straight Lines, Parallel Lines, Circles, Ellipses, Ratios
- Transformations
  - Identity, Translation, Rotation, Uniform Scaling, Non-uniform Scaling, Shear, Reflection, Orthographic Projection, Perspective Projection

Literature

Akenine-Möller, Haines, Hoffman: Real-Time Rendering, Taylor & Francis, 2008.
- Chapter 4

Shreiner, Seller, Kessenich, Licea-Kane: OpenGL Programming Guide, 2013.
- Chapter 3

Paul Bourke, University of Western Australia: http://paulbourke.net/stereographics/
