Computer Graphics

Rasterization

Prof. Dr. David Bommes

Computer Graphics Group

Last Time: Triangle Meshes

Triangle Meshes

Triangle meshes can represent arbitrary surfaces

What is a triangle mesh?

Connectivity / Topology
- Vertices \(\mathcal{V} = \{ v_1, \dots, v_n \}\)
- Edges \(\mathcal{E} = \{ e_1, \dots, e_k \}\), \(e_i \in \mathcal{V} \times \mathcal{V}\)
- Faces \(\mathcal{F} = \{ f_1, \dots, f_m \}\), \(f_i \in \mathcal{V} \times \mathcal{V} \times \mathcal{V}\)

Geometry
- Vertex positions \(\{ \vec{p}_1, \dots, \vec{p}_n \}\), \(\vec{p}_i \in \R^3\)

Indexed Face Set

Indexed Face Sets are used for many file formats (e.g. OFF, OBJ, VRML)
Memory consumption
12 B/v + 12 B/f = 36 B/v

Halfedge-Based Connectivity

Store connectivity per halfedge
Memory consumption
16 B/v + 4 B/f + 20 B/h = 144 B/v
(can be reduced to 96 B/v)
Edges & halfedges explicitly represented
No case distinctions during traversal!

One-Ring Traversal

Simple one-ring traversal without case distinctions:

Start at vertex
Outgoing halfedge
Opposite halfedge
Next halfedge
Opposite halfedge
Next halfedge
…

Flat Shading vs. Phong Shading

Flat shading
- Use constant face normal for lighting
- Yields facetted appearence
- Mach band effect emphasizes this even more

Phong shading
- Use smooth normal field for lighting
- Compute normal vectors per vertex
- Barycentric interpolation of normal vectors

Interpolate Vertex Normals

Intersection point with barycentric coordinates \[ \vec{x} = \alpha\vec{A} + \beta\vec{B} + \gamma\vec{C}\]
Linearly interpolate vertex normals \[ \vec{n}\of{\vec{x}} = \alpha\vec{n}\of{\vec{A}} + \beta\vec{n}\of{\vec{B}} + \gamma\vec{n}\of{\vec{C}} \]
Use \(\vec{n}(\vec{x})\) to light point \(\vec{x}\)
Normalize for lighting calculations!

Spatial Data Structures

Brute-Force
- Intersect ray with all \(n\) triangles of the mesh
- Select intersection with smallest positive ray parameter \(t\)
- Computational cost: \(\mathcal{O}(n)\)
Bounding Volumes
- Bound mesh by simple-to-interesect objects (sphere, box, etc.)
- Only if ray intersects bounding volume, then test individual triangles
- Bounding volume hierarchy leads to \(\mathcal{O}(\log n)\)
Spatial Hierarchy
- Partition scene into a spatial hierarchy
- Grid, Octree, kD-tree, BSP-tree
- Spatial hierarchy leads to \(\mathcal{O}(\log n)\)

Bounding Volume Hierarchies

Construction: bottom-up

Bounding Volume Hierarchies

Traversal: recursive top-down

each geometric primitive intersected only once (no mailboxing required)

KD-Trees

Construction
- compute bounding box
- recursively split cell using axis-aligned plane until maximum depth or minimum number of remaining objects is reached
- choosing the split plane
  - midpoint
  - median cut
  - advanced strategies
- builds a binary tree structure

Today: Rasterization & 2D Transformations

Rasterization Pipeline

Ray Tracing vs. Rasterization

Ray Tracing
- Shoot rays from 2D pixels into 3D scene
- “backward rendering”
- needs ray intersections

Rasterization
- Project 3D objects onto 2D image plane
- “forward rendering”
- needs transformations, projections, visibility computation

images/raytracing-vs-rasterization-2.svg

Rasterization Pipeline

Transformations & Projections

images/trafo-scaling.svg scaling images/trafo-rotation.svg rotation images/trafo-translation.svg translation

Transformations & Projections

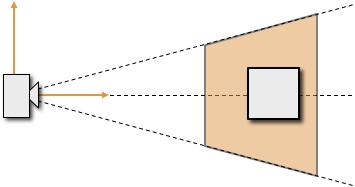

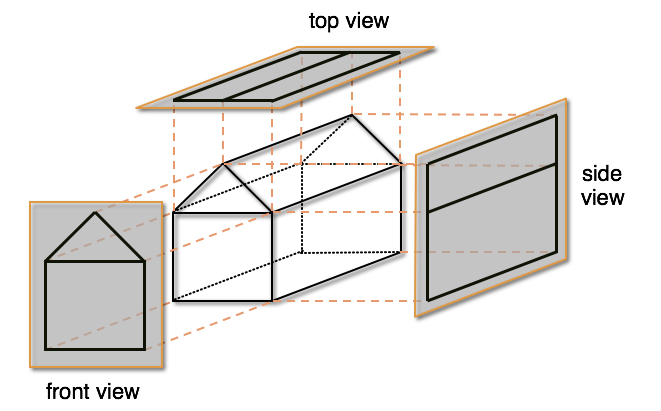

images/ortho-projection.png images/frustum-1.png

Lighting

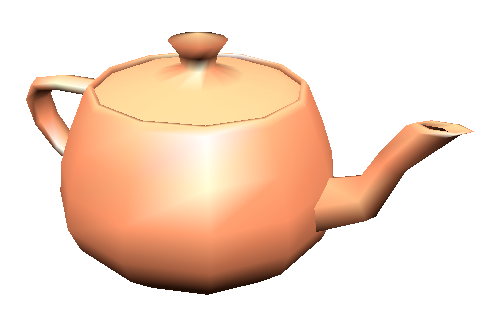

images/teapot-flat.png flat images/teapot-gouraud.png Gouraud images/teapot-phong.png Phong

Clipping

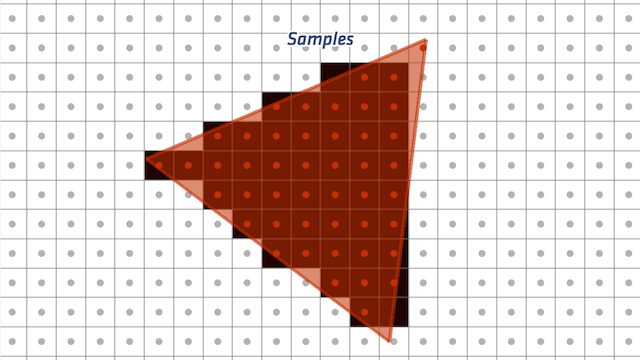

Rasterization

Shading

Phong Lighting Model

images/spheres-0.png ambient images/spheres-1.png +diffuse images/spheres-2.png +specular

Visibility

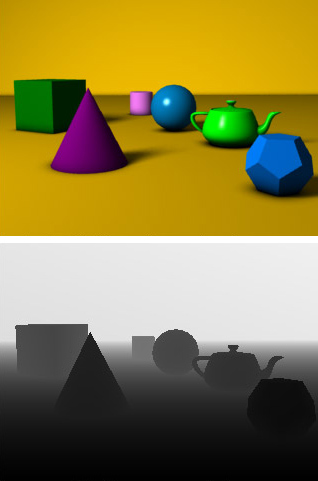

images/z-buffer.jpg images/z-buffer.svg z-Buffer

Rasterization Pipeline

Computer Graphic APIs

Low-level rendering (\(\rightarrow\) rendering commands)
- OpenGL (Open Graphics Library)
- Direct3D
- Vulkan, Metal, Direct3D 12
- WebGL, WebGPU
- …

High level scene graphs (\(\rightarrow\) scene description)
- OpenInventor
- OpenSG, InstantReality
- OpenSceneGraph
- Java3D
- …

What is OpenGL?

Computer Graphics Rendering API
- render images from geometry and image data
- process simple primitives (points, lines, triangles)
- create interactive 3D graphics applications!
- see http://www.opengl.org
OpenGL is
- operating system independent (Linux, Mac, Win, mobile)
- window system independent (X-Windows, Wayland, …)
- hardware accelerated (Nvidia, ATI/AMD, Intel, …)

OpenGL History

OpenGL 1.0 (1994)

images/opengl10.svg

Fixed function pipeline, only parameters could be set

OpenGL 2.0 (2004)

Programmable vertex and fragment shaders
GL Shading Language (GLSL) 1.10

OpenGL 3.0 (2008)

images/opengl30.svg

GLSL 1.30
Unified shaders

Introduced the deprecation model
- marked “useless” features deprecated
- For 15 years features have been added
- No feature has ever been removed
- But hardware changed significantly!

OpenGL 3.1 (2009)

images/opengl30.svg

GLSL 1.40
Removed deprecated features, but they could still be accessed through the extension GL_ARB_compatibility

OpenGL 3.2 (2009)

images/opengl32.svg

GLSL 1.50
Added geometry shaders
Introduced context profiles
- CoreProfile: only non-deprecated features (We focus on core profile!)
- CompatibilityProfile: all features ever in OpenGL

OpenGL 4.1 (2010)

images/opengl41.svg

GLSL 4.10
Added tessellation shaders

Window API

Window APIs

GLX, CGL, AGL
- Glue between OpenGL and windowing system
GLUT, GLFW, Qt, …
- Portable windowing (GUI) APIs
- Handle windows, key/mouse events, …
- Provide OpenGL widgets

Which Window API?

GLUT
- Too old, does not provide core profile
freeglut
- Ok for Linux/Windows, not really ok for Mac
GLFW
- Successor of GLUT, very minimalistic
- http://www.glfw.org
- used for exercises
Qt
- Nice (but complex!) GUI API for Linux, Windows, Mac
- http://www.qt.io
- useful for larger projects

Why not old OpenGL?

GPU, OS	old OpenGL immediate mode	new OpenGL vertex buffer objects
NVIDIA GeForce 9400M, Mac OS X	12	56
NVIDIA GeForce GT 120, Mac OS X	27	216
NVIDIA GeForce GTX 285, Windows 7	10	315
ATI Radeon HD 5680, Mac OS X	20	592
NVIDIA GeForce GTX 580, Linux	7	600

Rendering performance in million triangles per second,
measured on a model with 400k triangles

Modern OpenGL

OpenGL 3.2 Pipeline

We will focus on OpenGL 3.2 (and higher) from now on.

OpenGL 3.2 Pipeline

images/opengl32-vert_high.svg

How to store & send geometry data?

Primitives in Core Profile

images/gl_line_strip.png — `GL_LINE_STRIP`

images/gl_line_loop.png — `GL_LINE_LOOP`

images/gl_triangles.png — `GL_TRIANGLES`

images/gl_triangle_fan.png — `GL_TRIANGLE_FAN`

images/gl_triangle_strip.png — `GL_TRIANGLE_STRIP`

Geometric Objects

Vertex data must be stored in vertex arrays (VAs)
- No more (inefficient) immediate mode rendering!
VAs must be stored in vertex buffer objects (VBOs)
- VBOs are vertex arrays that are stored on the GPU
VBOs must be stored in vertex array objects (VAOs)
- VAOs manage all VBOs and VertexAttribPointers
- Rendering: Simply enable VAO per geometric object

Store mesh data in VBO/VAO

// buffer indices
GLuint vao, vbo, nbo, ibo;

//mesh data
GLfloat  positions[3*n_vertices];
GLfloat    normals[3*n_vertices];
GLuint    indices[3*n_triangles];

Store mesh data in VBO/VAO

// generate vertex array object
glGenVertexArrays(1, &vao);
glBindVertexArray(vao);

// vertex positions -> attribute 0
glGenBuffers(1, &vbo);
glBindBuffer(GL_ARRAY_BUFFER, vbo);
glBufferData(GL_ARRAY_BUFFER, 3*n_vertices*sizeof(GLfloat), positions, GL_STATIC_DRAW);
glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, 0, 0);
glEnableVertexAttribArray(0);

// normal vectors -> attribute 1
glGenBuffers(1, &nbo);
glBindBuffer(GL_ARRAY_BUFFER, nbo);
glBufferData(GL_ARRAY_BUFFER, 3*n_vertices*sizeof(GLfloat), normals, GL_STATIC_DRAW);
glVertexAttribPointer(1, 3, GL_FLOAT, GL_FALSE, 0, 0);
glEnableVertexAttribArray(1);

// triangle indices
glGenBuffers(1, &ibo);
glBindBuffer(GL_ELEMENT_ARRAY_BUFFER, ibo);
glBufferData(GL_ELEMENT_ARRAY_BUFFER, 3*n_triangles*sizeof(GLuint), indices, GL_STATIC_DRAW);

Geometric Objects

Render using vertex arrays

    // activate VAO (this activates all VBOs and attrib pointers)
    glBindVertexArray(vao);
    // draw triangles
    glDrawElements(GL_TRIANGLES, 3*n_triangles, GL_UNSIGNED_INT, NULL);

Delete buffers and vertex array in the end

    // delete vertex buffer objects
    glDeleteBuffers(1, &vbo);
    glDeleteBuffers(1, &nbo);
    glDeleteBuffers(1, &ibo);
    // delete vertex array object
    glDeleteVertexArrays(1, &vao);

OpenGL 3.2 Pipeline

Vertex & Fragment Shaders

OpenGL Core Profile

In Core Profile, you have to use shaders!
- vertex & fragment shaders are mandatory
- geometry/tessellation shaders are optional
No predefined transformations/projections
- do all matrix work yourself
No predefined lighting functions
- do all lighting work yourself

Vertex Shader

Input
- vertex attributes (position, normal, color, …)
- constant (uniform) parameters
Output
- required: vertex’ clip space coordinates
  (after model, view, and projection transformation)
- optional: vertex colors, texture coordinates, point size, …
- outputs are interpolated and sent to fragment shader
One vertex in, one vertex out
- No connectivity information

Vertex Shader

What we have to do ourselves
- modelview and projection transform
- normal transformation
- per-vertex lighting (for Gouraud shading)
What we cannot do ourselves (but can configure)
- clipping
- perspective division
- viewport transformation

Fragment Shader

Input
- fragment’s window position
- primary / secondary colors
- texture coordinates
- for per-pixel lighting: data for Phong model
- all input is interpolated from vertex shader output
Output
- pixel’s color
- Optional: pixel’s depth value

Fragment Shader

What we have to do ourselves
- texture fetch
- texture application
- per-pixel lighting (for Phong shading)
What we cannot do ourselves (but can configure)
- per-fragment operations
- depth test
- blending (e.g. alpha blending)

GLSL: OpenGL Shading Language

Part of OpenGL since version 2.0
High level shading language
Very similar to C/C++
Built-in vector and matrix types
Many powerful helper function
Poor debugging support 😢
… Stay tuned for exercise session

Literature

Shreiner, Seller, Kessenich, Licea-Kane: OpenGL Programming Guide, 8th edition, 2013.

Rost: OpenGL Shading Language, 3rd edition, 2009.

Seller, Wright, Haemel: OpenGL SuperBible, 7th edition, 2015

References

Ed Angel, Dave Shreiner: An Introduction to Modern OpenGL Programming, SIGGRAPH 2011 Course
- http://www.daveshreiner.com/SIGGRAPH/s11/
Documentation browser: http://docs.gl/
Good OpenGL tutorial series:
- https://open.gl/
- https://learnopengl.com/
OpenGL and Khronos webpages
- http://www.opengl.org
- http://www.khronos.org
